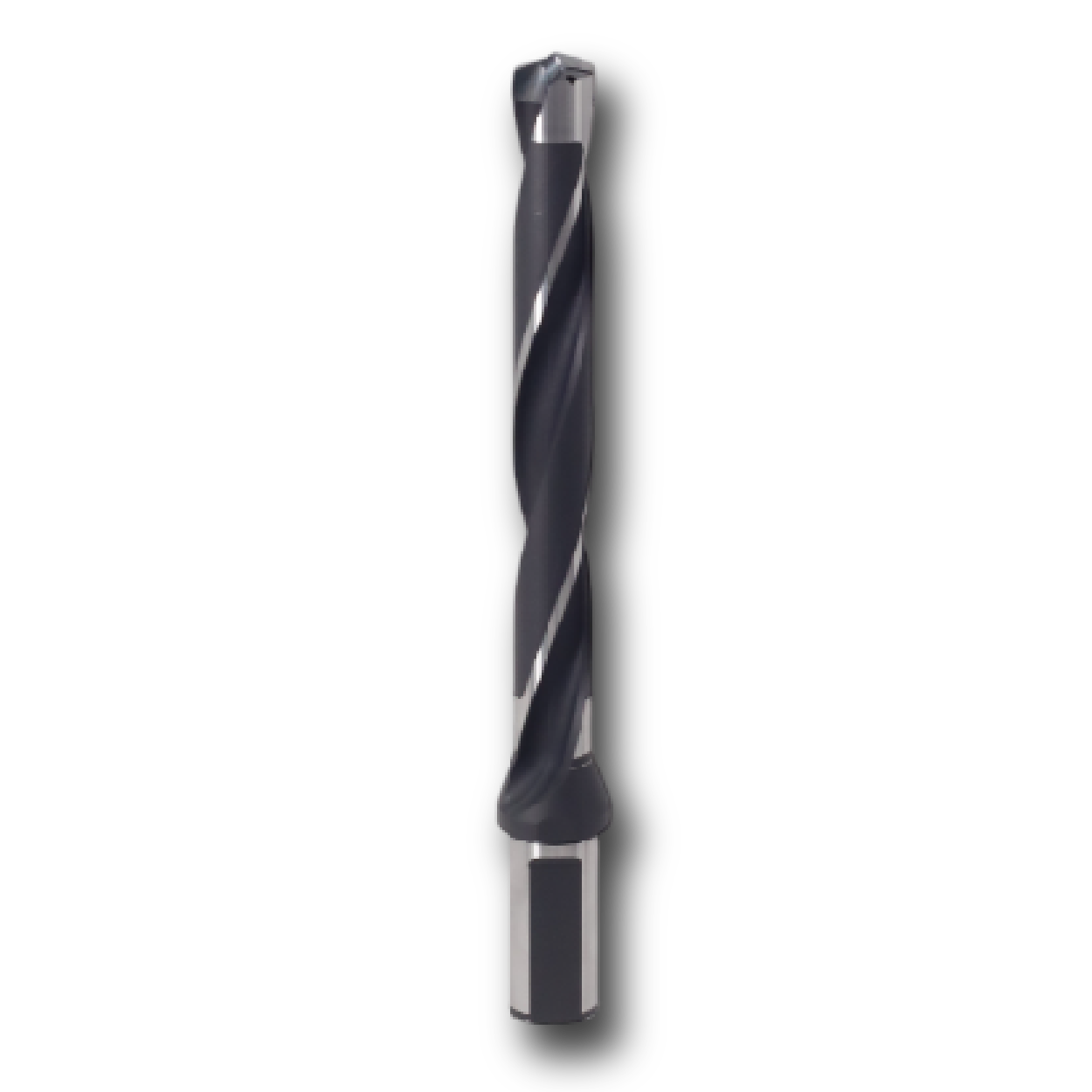

The Crown Drill system features a replaceable carbide crown tip on a precision steel body. Change only the cutting tip — not the entire drill — for dramatic cost savings while maintaining hole accuracy and finish.
Save up to 60% vs solid carbide drills — replace only the tip.
Change tips in seconds without removing the body from the machine.
Unique crown geometry ensures straight, accurate hole entry.
Hardened steel body lasts hundreds of tip changes.
| Model | Dia (mm) | Depth | Body | Tip Grade | Coating |
|---|---|---|---|---|---|
| CRD-080-3D | 8.0 | 3×D | Steel | CF5215 | TiAlN |
| CRD-100-3D | 10.0 | 3×D | Steel | CF5215 | TiAlN |
| CRD-120-5D | 12.0 | 5×D | Steel | CF5215 | TiAlN |
| CRD-140-5D | 14.0 | 5×D | Steel | CF5215 | TiAlN |
| CRD-160-5D | 16.0 | 5×D | Steel | CF5215 | TiAlN |
| CRD-200-5D | 20.0 | 5×D | Steel | CF5215 | TiAlN |
Download our complete Crown Drill catalog including detailed chip-breaker diagrams, cutting speed charts, and grade recommendations.
