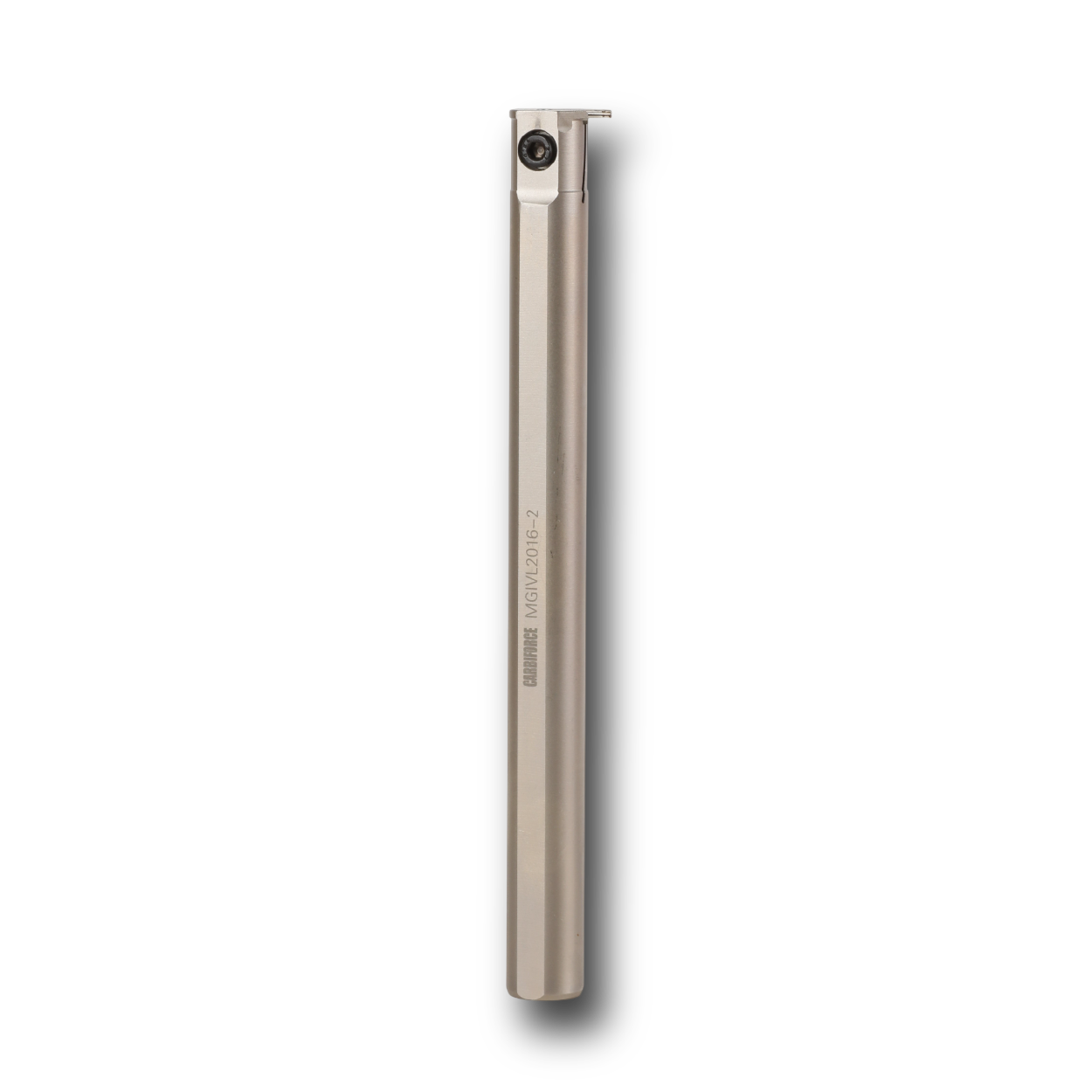

Internal grooving boring bars for producing grooves, O-ring seats, and snap ring grooves inside bores. Anti-vibration design with internal coolant for clean internal grooves.
Reach into bores as small as 12mm for internal groove production.
Precise groove dimensions for O-ring and snap ring seats.
Dampened bar reduces chatter for superior groove surface quality.
Internal coolant prevents chip build-up in blind-hole grooving.
| Model | Min Bore (mm) | Shank (mm) | Width (mm) | Length (mm) | Coolant |
|---|---|---|---|---|---|
| MGIVR2016-2 | 16 | 16 | 2.0 | 180 | Yes |
| MGIVR2520-3 | 20 | 20 | 3.0 | 200 | Yes |
| MGIVR3225-3 | 25 | 25 | 3.0 | 250 | Yes |
| MGIVR3225-4 | 25 | 25 | 4.0 | 250 | Yes |
| MGIVR4032-3 | 32 | 32 | 3.0 | 300 | Yes |
Download our complete Grooving Boring Bars catalog including detailed chip-breaker diagrams, cutting speed charts, and grade recommendations.
