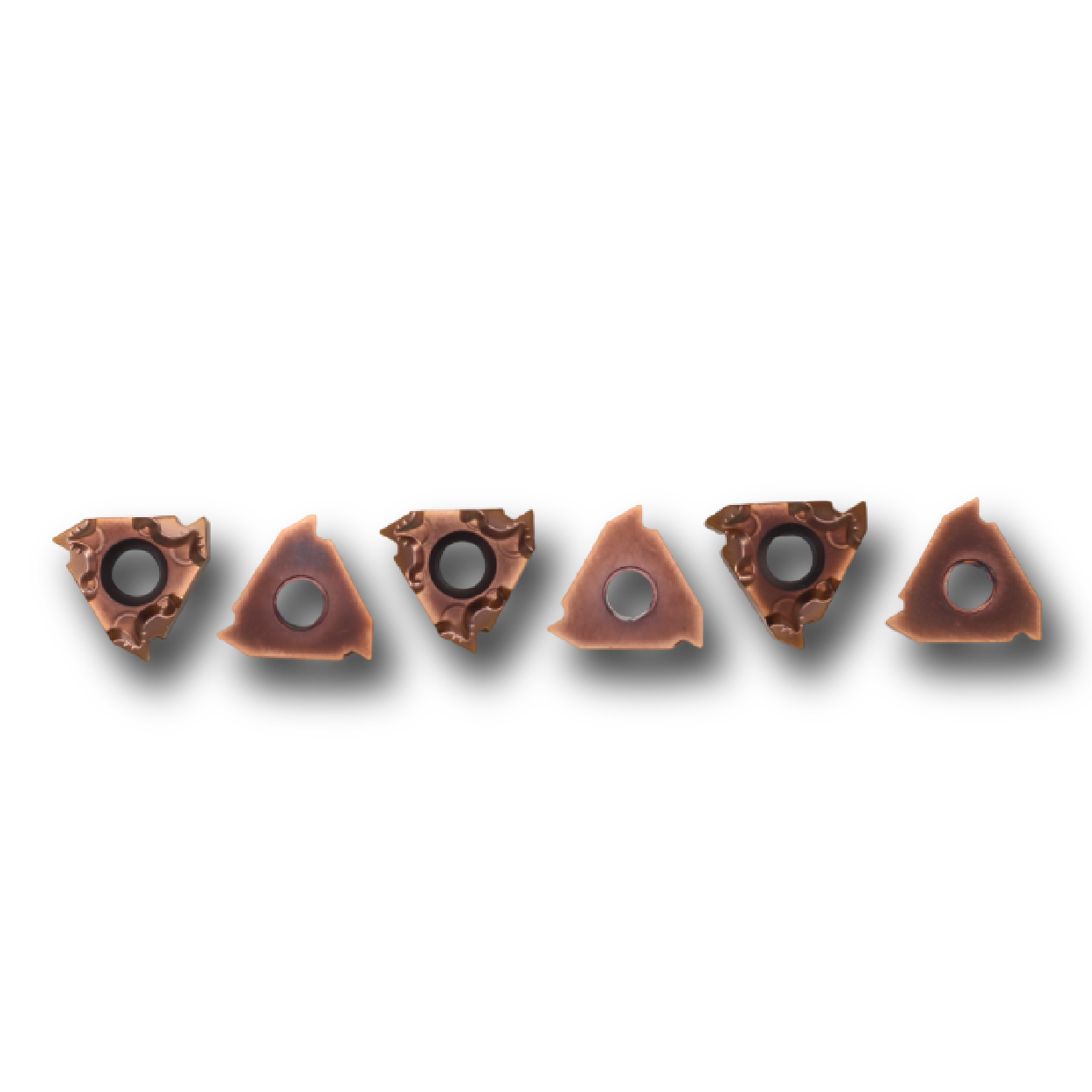

Full-profile and partial-profile threading inserts for internal and external threads. Available in ISO metric, UN, BSP, NPT, and BSPT profiles with precision-ground thread forms for accurate pitch.
Complete range of ISO Metric, UN, BSP, NPT, and BSPT thread profiles.
Ground thread form ensures accurate pitch and profile conformance.
Choose full-profile for single-pitch or partial-profile for versatility.
PVD coating and tough substrate deliver consistent thread quality.
| Model | Profile | Pitch Range | Size | Type | Coating |
|---|---|---|---|---|---|
| 16ER-1.5ISO-CF | ISO Metric | 1.5mm | 16ER | External | PVD |
| 16IR-1.5ISO-CF | ISO Metric | 1.5mm | 16IR | Internal | PVD |
| 16ER-14UN-CF | UN | 14 TPI | 16ER | External | PVD |
| 16ER-14BSPT-CF | BSPT | 14 TPI | 16ER | External | PVD |
| 22ER-4.0ISO-CF | ISO Metric | 4.0mm | 22ER | External | PVD |
Download our complete Threading Inserts catalog including detailed chip-breaker diagrams, cutting speed charts, and grade recommendations.
