Engineered grades for different materials and machining conditions.
.png)

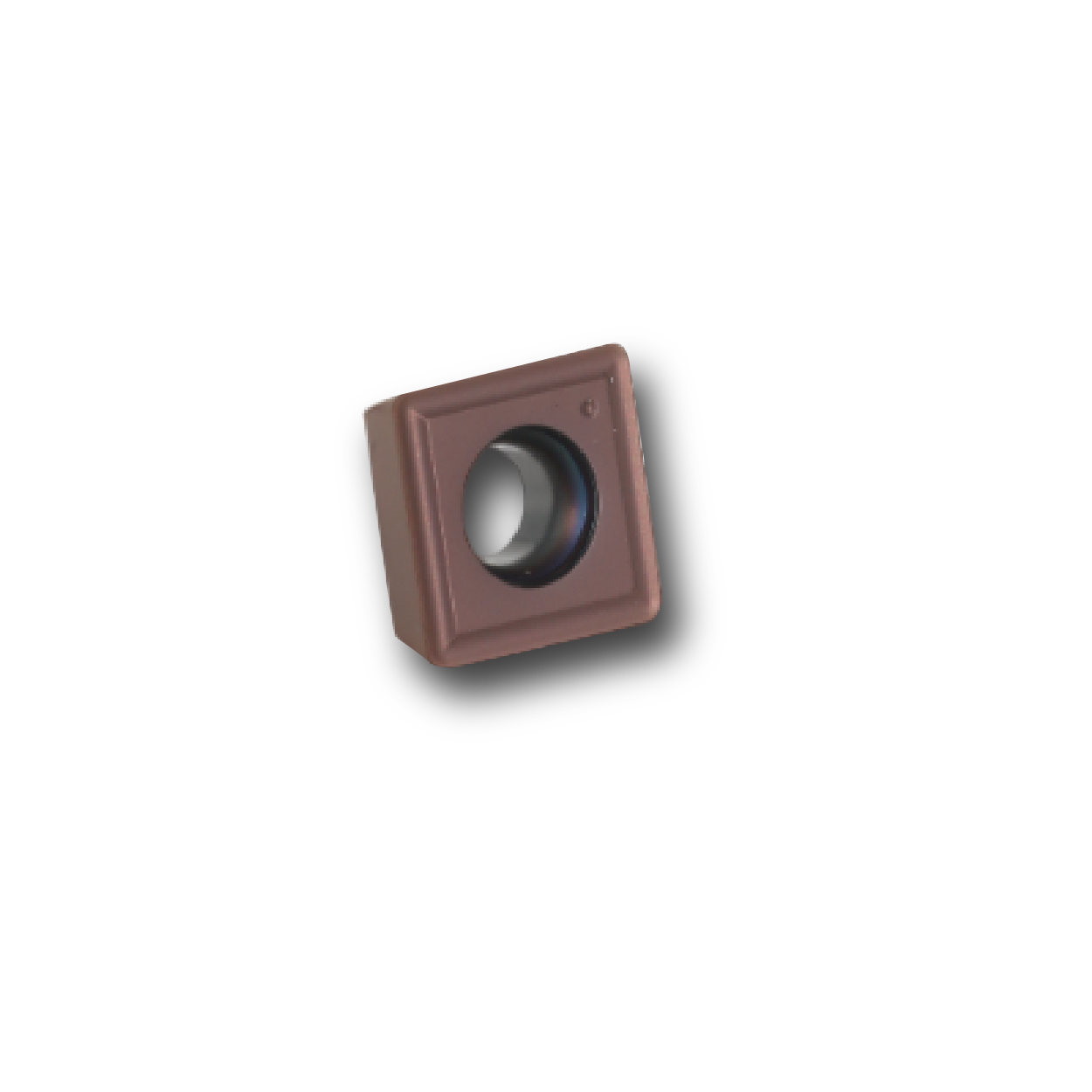

Indexable drilling inserts for U-drill and indexable drill systems. Engineered for excellent hole accuracy and surface finish with optimized chip evacuation in all workpiece materials.
Unique point geometry ensures accurate hole entry without pilot drilling.
Advanced chipbreaker design prevents chip packing in deep holes.
Central and peripheral inserts work together for balanced cutting.
PVD coating delivers consistent performance over extended production runs.
| Model | Position | IC (mm) | Coating | Grade | Application |
|---|---|---|---|---|---|
| WCMX050308-CF | Central | 5 | PVD | CF5215 | Steel |
| WCMX06T308-CF | Central | 6 | PVD | CF5215 | Steel |
| SPGT07T308-CF | Peripheral | 7 | PVD | CF5215 | General |
| SPGT110408-CF | Peripheral | 11 | PVD | CF5125 | Stainless |
Share your workpiece material, operation and machine setup. Our application engineers will recommend the right Drilling Inserts geometry, grade and cutting parameters for your job.
