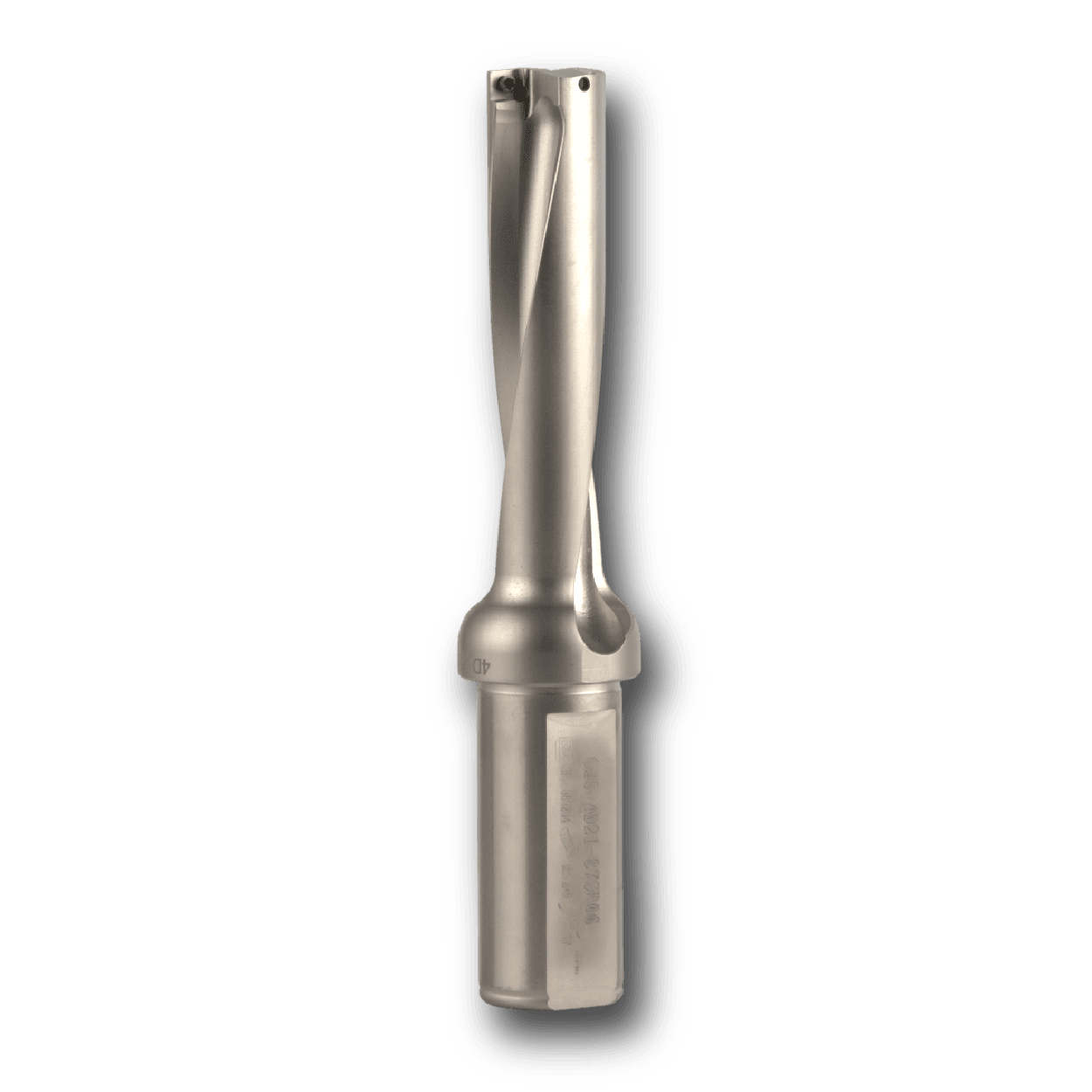

The SPWC U-Drill series delivers high-speed indexable drilling with exceptional hole quality. Internal coolant supply ensures efficient chip evacuation, while the robust body design handles high feed rates.
Drill up to 5×D in a single pass without pecking cycles.
High feed rates for maximum productivity in production environments.
Internal coolant at up to 70 bar for reliable deep-hole chip evacuation.
Optional chamfer insert creates chamfered holes in a single operation.
| Model | Dia (mm) | Depth | Shank | Insert (C) | Insert (P) |
|---|---|---|---|---|---|
| SPWC-140-2D | 14 | 2×D | C20 | WCMX050308 | SPGT07T308 |
| SPWC-180-3D | 18 | 3×D | C25 | WCMX06T308 | SPGT07T308 |
| SPWC-250-3D | 25 | 3×D | C25 | WCMX06T308 | SPGT110408 |
| SPWC-320-4D | 32 | 4×D | C32 | WCMX06T308 | SPGT110408 |
| SPWC-400-3D | 40 | 3×D | C32 | WCMX06T308 | SPGT110408 |
Download our complete SPWC U-Drill catalog including detailed chip-breaker diagrams, cutting speed charts, and grade recommendations.
