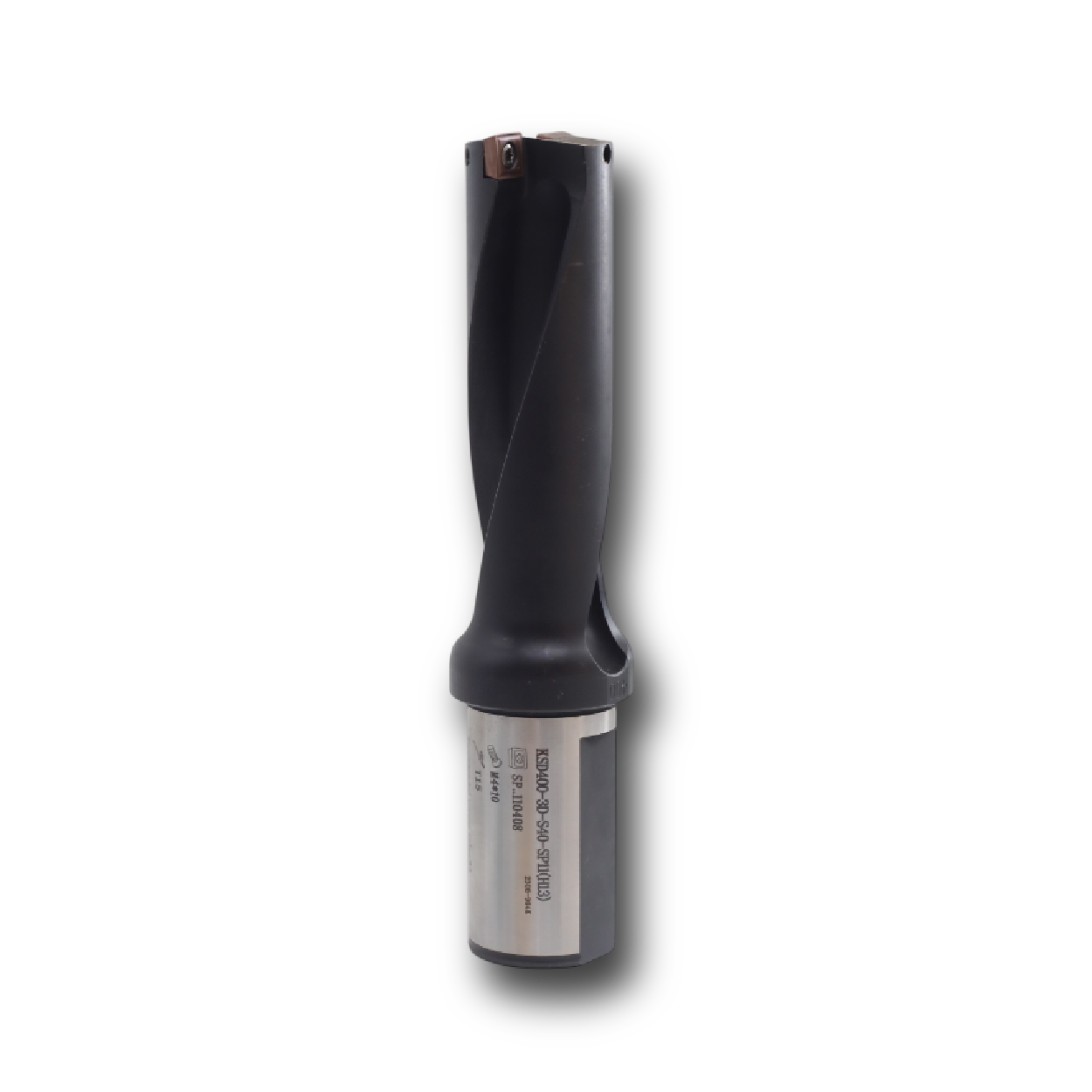

H13 U-Drill

H13 Series
Heavy-Duty U-Drill

The H13 U-Drill is built from H13 tool steel for extreme rigidity and durability in heavy-duty drilling applications. Ideal for large-diameter holes in structural steel, forgings, and heavy plate.

H13 tool steel body for maximum strength
Large diameter range from 25mm to 60mm
Internal coolant delivery at high pressure
Secure insert pocket design prevents micro-movement
Suitable for structural steel and heavy plate

Heavy Duty
Drilling Power

H13 Steel Body

H13 hot-work tool steel provides exceptional toughness and heat resistance.

H1352 HRC

Large Diameters

Drill holes from 25mm to 60mm in tough materials with confidence.

25-60mmBig Bore

Heavy Plate

Designed for drilling through thick structural plates and forgings.

StructuralForging

Secure Seats

Anti-rotation pocket design eliminates insert micro-movement.

Anti-RotationSecure

Popular Inventory Grades

ModelDia (mm)DepthShankBody MaterialCoolant
H13-UD-250-3D253×DC25H13 SteelYes
H13-UD-320-3D323×DC32H13 SteelYes
H13-UD-400-3D403×DC32H13 SteelYes
H13-UD-500-3D503×DC40H13 SteelYes
H13-UD-600-2D602×DC40H13 SteelYes

Connect With Our Engineers

Share your workpiece material, operation and machine setup. Our application engineers will recommend the right H13 U-Drill geometry, grade and cutting parameters for your job.
