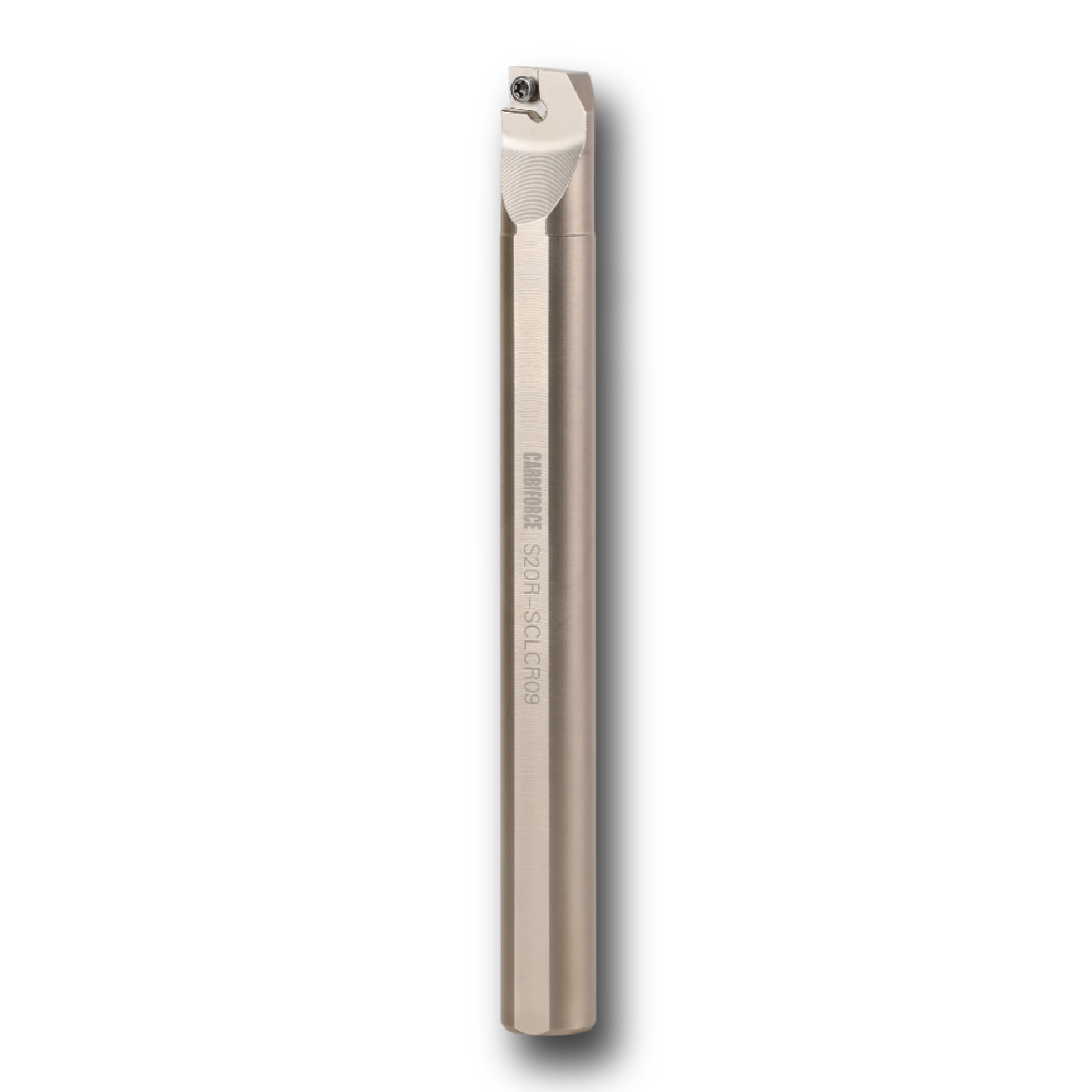

Steel-shank boring bars engineered for internal turning operations. Designed with anti-vibration features for deep bore machining, available in a full range of diameters with internal coolant supply.
Reliable performance in deep bore applications up to 8×D overhang.
Dampened bar design minimizes chatter for superior bore finish.
High-pressure internal coolant for efficient chip breaking.
Complete diameter range for all internal turning needs.
| Model | Bore Dia (mm) | Shank Dia (mm) | Length (mm) | Insert | Coolant |
|---|---|---|---|---|---|
| S12M-SCLCR09 | 12 | 12 | 150 | CCMT09 | Yes |
| S16Q-SCLCR09 | 16 | 16 | 180 | CCMT09 | Yes |
| S20R-SCLCR09 | 20 | 20 | 200 | CCMT09 | Yes |
| S25S-SCLCR12 | 25 | 25 | 250 | CCMT12 | Yes |
| S32T-SCLCR12 | 32 | 32 | 300 | CCMT12 | Yes |
Share your workpiece material, operation and machine setup. Our application engineers will recommend the right Turning Boring Bars geometry, grade and cutting parameters for your job.
