Grooving Tool Holders

External
Grooving Tool Holders

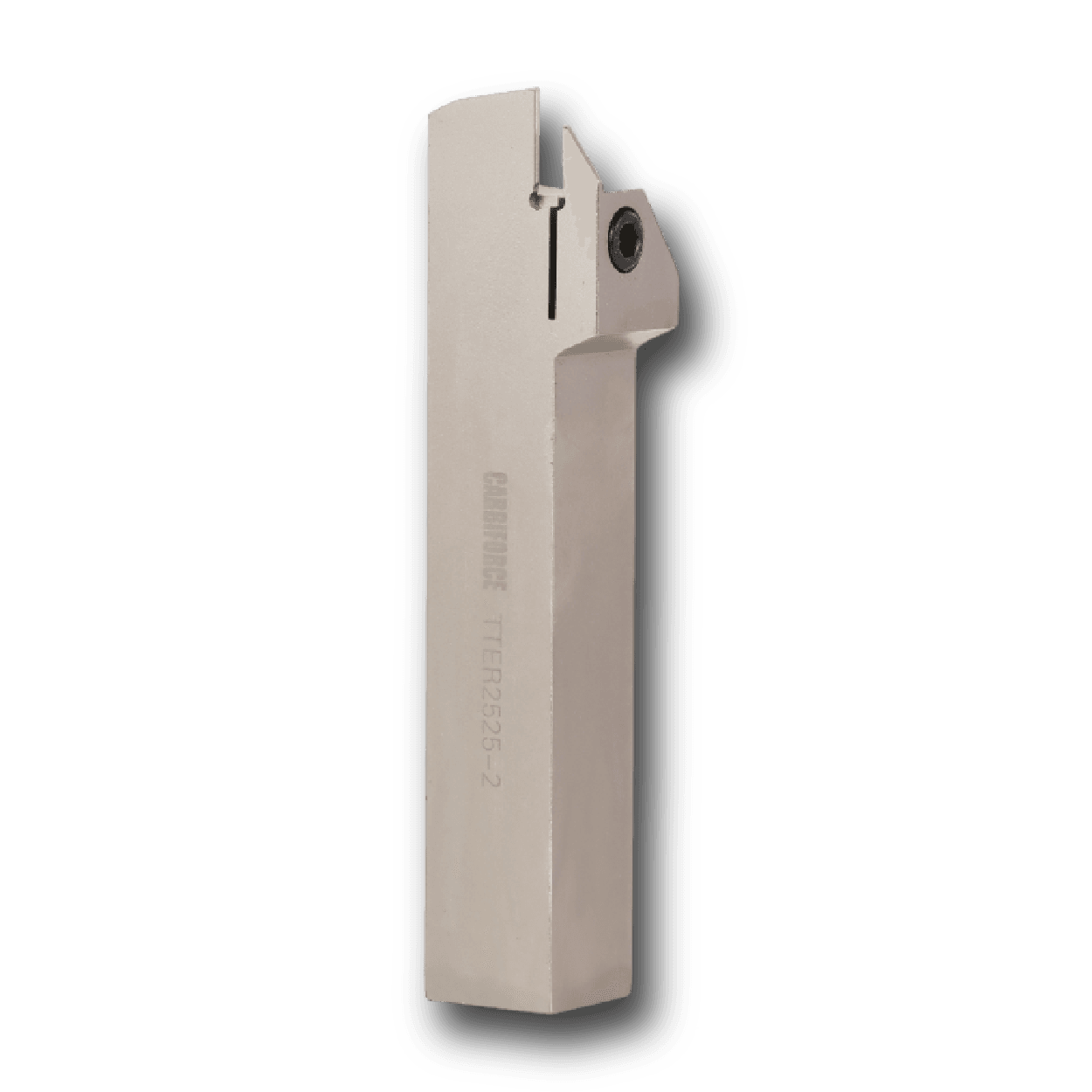

Rigid external grooving tool holders with spring-loaded clamping for secure insert retention. Internal coolant delivery and compact design for excellent accessibility in tight spaces.

Spring-loaded self-grip clamping system
Internal coolant delivery for chip evacuation
Compact head design for tight access
Available in right and left-hand versions
Shank sizes from 12mm to 32mm

Secure Grip
Clean Grooves

Self-Grip Clamp

Spring-loaded system holds the insert securely under cutting forces.

Self-GripSecure

Compact Head

Slim head design reaches into tight areas with minimal interference.

SlimAccessible

Coolant Through

Directed coolant flow for effective chip control in deep grooves.

CoolantDirected

Both Hands

Available in right and left-hand versions for all machine setups.

RightLeft

Popular Inventory Grades

ModelShank (mm)Insert WidthHandLength (mm)Coolant
MGEHR2020-320×203mmRight125Yes
MGEHL2020-320×203mmLeft125Yes
MGEHR2525-425×254mmRight150Yes
MGEHR2525-525×255mmRight150Yes
MGEHR3232-432×324mmRight170Yes

Need the Full Specifications?

Download our complete Grooving Tool Holders catalog including detailed chip-breaker diagrams, cutting speed charts, and grade recommendations.
