TITANIUM
MACHINING
INSERT SERIES
ADVANCED ZrN PVD-COATED CARBIDE GRADE
TNMG–MA
CTS330E TITANIUM MACHINING INSERTS SERIES
INTRODUCING CTS330E
ADVANCED ZrN PVD-COATED CARBIDE GRADE
INTERFACE CONTROL ACROSS TITANIUM TURNING, MILLING AND DRILLING.
Titanium components rarely involve a single machining operation. External turning, shoulder generation, contour milling, profile machining and holemaking create different cutting loads—but all depend on controlling adhesion, friction and edge condition at the tool–material interface.
CTS330E is developed as a coordinated insert-grade platform for titanium machining. Its Zirconium Nitride PVD coating provides a hard, low-friction and low-affinity interface, while operation-specific insert geometries address the mechanical demands of turning, milling, profiling and drilling.
ZrN Coating
2.0 μm · 30 GPa
Interface
Interface
Carbide Substrate
Substrate
CORE COATING
TECHNOLOGY
The ZrN coating chemistry exhibits low chemical affinity with titanium, helping limit material pickup and built-up edge formation. Its low-friction surface supports controlled chip movement, while the hard coating layer resists progressive abrasive wear. Combined with the mechanically supportive carbide substrate, the interface is designed to retain edge definition and consistent machining behaviour.

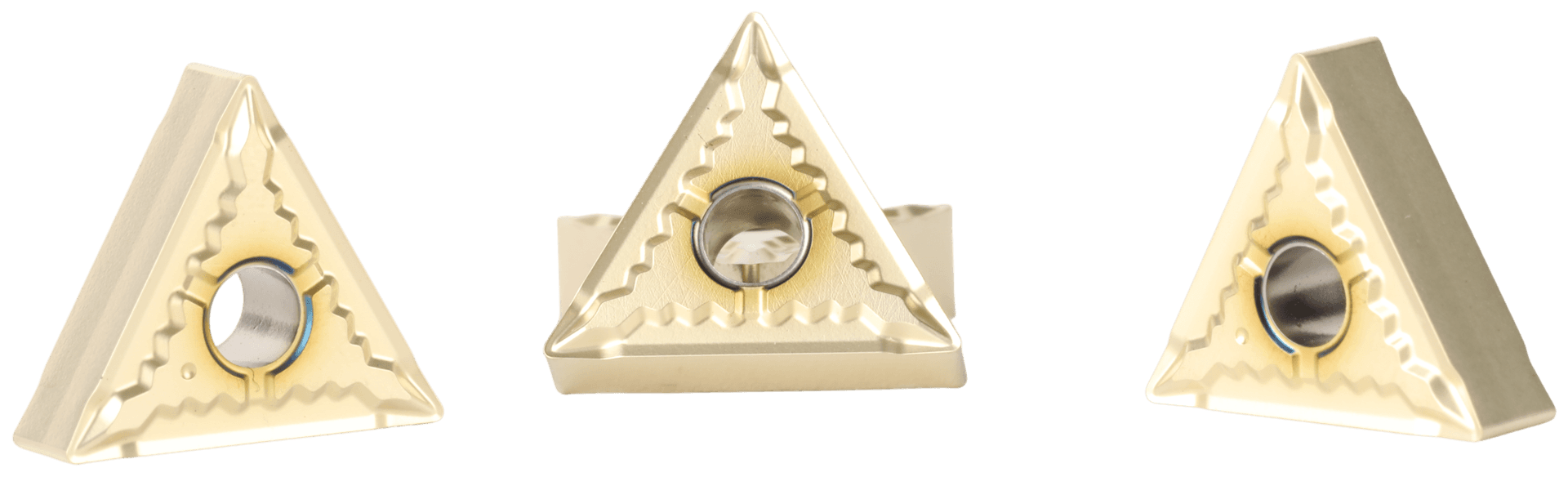

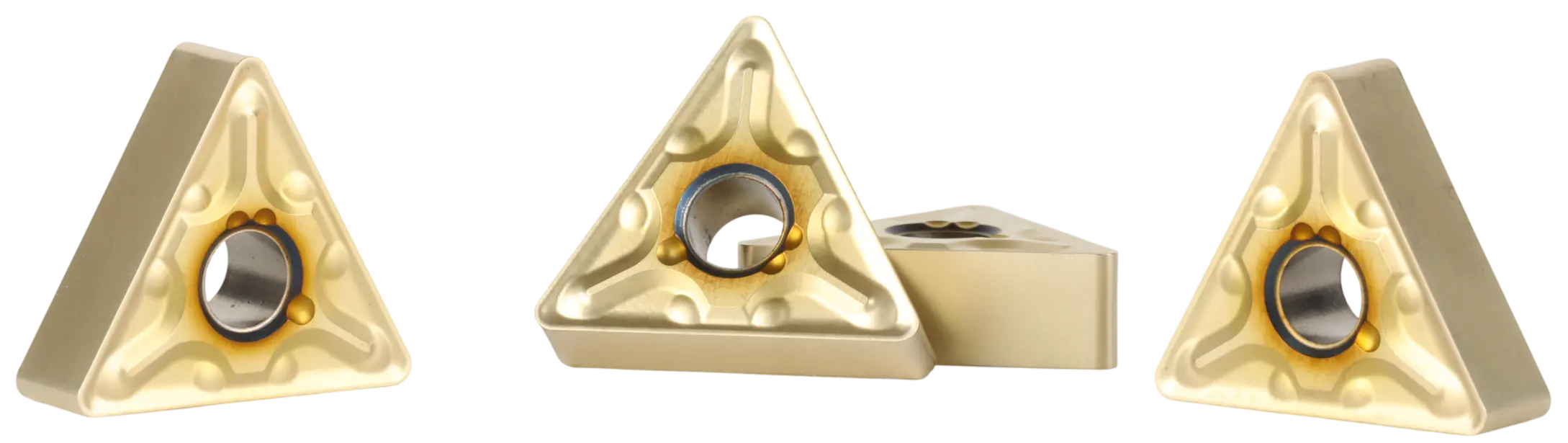

TNMG–MA
CONTROL THE CHIP. SUPPORT THE EDGE.
Titanium turning from controlled stock removal to profile generation. The MA geometry supports chip flow and a load-bearing edge across medium-to-rough engagement.
ONE CTS330E INTERFACE. MULTIPLE TITANIUM OPERATIONS.
START WITH A CONTROLLED CTS330E APPLICATION TRIAL.
Share your component drawing, titanium grade, current tooling, machining conditions and required production outcome. Carbiforce application engineers will support insert selection, geometry matching, starting cutting-data recommendations, coolant and engagement review, trial planning and performance evaluation.
Titanium and titanium alloys are widely used in demanding applications where high strength-to-weight ratio, corrosion resistance, and elevated-temperature performance are critical. However, their low thermal conductivity, high chemical reactivity, and tendency to generate heat at the cutting zone make titanium machining considerably more demanding than conventional machining of steels. CTS330E Titanium Inserts Importers can source reliable titanium machining inserts from Carbiforce for industrial requirements.
Carbiforce titanium machining inserts are developed for demanding machining operations across turning, milling, and drilling, providing cutting-edge performance for titanium and titanium-alloy components. The range includes solutions for general machining, precision finishing, profiling, high-feed milling, and hole-making applications. CTS330E Titanium Inserts Applications include titanium turning, profiling, and other demanding machining operations.
Our titanium inserts solutions are designed to support controlled cutting performance, predictable tool life, and consistent surface quality when machining difficult-to-cut titanium alloys such as Ti-6Al-4V. High-Performance CTS330E Titanium Inserts help improve cutting efficiency, machining stability, and tool performance.
The appropriate insert geometry, grade, cutting edge preparation, and coating should be selected according to the titanium alloy, machining operation, component geometry, machine rigidity, and cutting parameters.
Carbiforce CTS330E –Advanced Cutting Solution for Titanium Machining
Titanium Machining Inserts for Demanding Applications
Effective titanium machining requires careful control of cutting heat, cutting forces, chip evacuation, and tool-workpiece interaction. Conventional cutting-tool approaches can result in accelerated flank wear, built-up edge, chipping, or inconsistent tool life when the cutting conditions are not properly controlled. CTS330E Titanium Inserts for Engineering Applications are suitable for precision machining requirements across engineering and industrial sectors.
Carbiforce provides indexable inserts for titanium alloys with carbide substrates and coating technologies selected according to the machining operation and application requirements. CTS330E Titanium Inserts Applications include titanium turning, profiling, and other demanding machining operations.
These inserts can be used for:
The appropriate insert geometry, grade, cutting edge preparation, and coating should be selected according to the titanium alloy, machining operation, component geometry, machine rigidity, and cutting parameters.
Titanium Machining Problem → CTS330E Response
DEEP DIVE INTO TITANIUM-MACHINING TOPICS
ZrN Coated Carbide Inserts for Titanium Machining
Coating technology plays an important role in controlling tool-workpiece interaction during titanium machining.
ZrN coated carbide inserts can provide a suitable low-affinity surface for applications where reducing adhesion between the cutting tool and titanium workpiece is important.
Titanium has a strong tendency to interact with cutting-tool materials under elevated temperatures and pressure. A suitable coating can therefore help control adhesion and wear mechanisms at the cutting edge.
Carbiforce evaluates coating selection together with carbide substrate, insert geometry, and application requirements to provide a machining solution appropriate to the specific titanium operation.
Low-Affinity Coating for Titanium Machining
A low-affinity coating for titanium machining is particularly relevant because titanium can adhere to the cutting edge during machining.
Reducing the chemical and mechanical interaction between the tool and workpiece can help minimize undesirable adhesion-related wear. However, coating selection alone does not determine tool performance.
Insert geometry, substrate grade, cutting parameters, coolant application, machine rigidity, and workpiece condition must also be considered when selecting an insert for titanium machining.
Ti-6Al-4V Machining Inserts
Ti-6Al-4V is one of the most widely used titanium alloys in demanding engineering and aerospace applications. Its combination of strength, low density, and corrosion resistance makes it valuable for components where weight reduction and mechanical performance are important.
At the same time, Ti-6Al-4V can be challenging to machine because of its low thermal conductivity and strong tendency to retain heat near the cutting zone.
Carbiforce Ti-6Al-4V machining inserts are suitable for applications requiring controlled machining of this titanium alloy across turning, milling, and drilling operations.
The appropriate insert should be selected based on the specific operation and cutting conditions rather than using one insert configuration for every application.
Titanium Drilling Inserts for Hole-Making
Drilling titanium requires particular attention to heat generation, chip evacuation, hole geometry, and cutting-edge stability. Because titanium conducts heat poorly, a significant proportion of machining heat can remain concentrated around the cutting zone.
Carbiforce titanium drilling inserts are intended for indexable drilling applications where reliable hole production and controlled cutting performance are required.
They can be used for applications including:
General hole-making · Production drilling · Large-diameter holes · Aerospace component machining · Titanium alloy components · Precision engineering applications
For manufacturers looking for a Titanium Drilling inserts Supplier, Manufacturer in Pan India, Carbiforce offers carbide insert solutions for titanium drilling applications.
Proper selection of drill body, insert geometry, grade, coolant delivery, cutting speed, feed, and chip evacuation strategy is important for achieving consistent hole quality and tool performance.
Coating–Substrate Function Separation
ZrN PVD coating
Controls the tool–material interface: low chemical affinity, low friction, wear resistance and oxidation stability.
Carbide substrate
Provides mechanical support beneath the coating: load bearing, edge support, toughness and stability.
Insert geometry
Controls operation-specific mechanics: chip formation, entering angle, load direction, edge engagement and feature generation.
Carbide Inserts for Titanium Turning
Turning titanium requires an insert capable of maintaining edge integrity while managing the heat generated during cutting. Excessive cutting temperature or an unsuitable cutting edge can accelerate tool wear and affect dimensional consistency.
Carbiforce titanium turning inserts are intended for internal and external turning applications involving titanium and titanium alloys. The insert configuration can be selected according to the required operation, component geometry, depth of cut, feed rate, and finishing requirements.
Typical applications include:
For manufacturers looking for a Titanium Turning inserts Supplier, Manufacturer in Pan India, Carbiforce provides carbide insert solutions intended for industrial titanium machining requirements.
SIMPLE OPERATION-TO-SOLUTION TALKING POINTS
CTS330E | PRODUCT PLATFORM
The technical team does not need to explain what each standard insert shape is. Present the application challenge, the geometry response and the client value.
TNMG–MA
Turning · Medium-to-Rough
Titanium turning from controlled stock removal to profile generation. The MA geometry supports chip flow and a load-bearing edge across medium-to-rough engagement.
The final geometry selection should account for cutting depth, feed, component profile and rigidity.
MNC-STYLE PAGE QUALITY TARGET
Titanium Milling Inserts for High-Performance Machining
Milling titanium introduces additional challenges because the cutting edge repeatedly enters and exits the workpiece. This creates fluctuating mechanical and thermal loads that can lead to edge chipping if the insert geometry and machining parameters are not appropriately matched.
Carbiforce titanium milling inserts are designed for milling applications where edge strength, wear resistance, and controlled cutting action are important.
The range can be applied to operations such as:
For applications requiring titanium profile milling inserts, insert geometry should be selected according to the required profile, radial engagement, axial depth of cut, machine capability, and workpiece configuration.
High-feed milling titanium
High-feed milling titanium can be used to improve material-removal efficiency while controlling cutting forces through appropriate feed-per-tooth and depth-of-cut strategies.
However, high-feed machining should not be treated as a universal solution for every titanium component. Machine rigidity, cutter design, insert geometry, workpiece clamping, coolant strategy, and cutting parameters all influence the result.
Carbiforce can provide insert solutions for manufacturers requiring a controlled approach to titanium milling across different component geometries and production requirements.
For manufacturers searching for a Titanium Milling inserts Supplier, Manufacturer in Pan India, Carbiforce offers industrial carbide insert solutions for titanium milling applications.
Technical Specifications – CTS330E
Aerospace Titanium Machining Tools
Titanium is extensively used in aerospace components because of its high strength-to-weight ratio and corrosion resistance. Components may include structural parts, engine-related components, landing-system components, and other high-performance assemblies.
This makes reliable aerospace titanium machining tools important for manufacturers producing components with demanding dimensional, surface-finish, and productivity requirements.
Carbiforce titanium insert solutions can be applied across turning, milling, and drilling operations used in aerospace and precision engineering environments.
The correct insert selection depends on the specific alloy, component geometry, machining operation, machine conditions, and required production performance.
Why Choose Carbiforce Titanium Inserts?
Carbiforce focuses on carbide cutting-tool solutions for industrial machining applications where consistency and application-specific performance are important.
Our titanium insert range covers:
Instead of treating titanium machining as a single application, Carbiforce approaches insert selection according to the operation, material, geometry, cutting conditions, and production objective.
Carbiforce — Titanium Inserts Supplier & Manufacturer in India
Carbiforce provides carbide insert solutions for manufacturers involved in titanium machining across India.
Whether the requirement is for turning, milling, or drilling, the correct insert selection should be based on the application rather than simply choosing a generic titanium insert.
Titanium Drilling Inserts
Drilling
Carbiforce provides application-focused carbide tooling solutions for manufacturers and machining professionals across India. As a Titanium Drilling Inserts Supplier, Manufacturer in Pan India, we offer drilling insert solutions designed for demanding titanium and titanium-alloy hole-making applications.
Titanium Milling Inserts
Milling
For milling requirements, Carbiforce serves as a Titanium Milling Inserts Supplier, Manufacturer in Pan India, providing carbide insert solutions for profiling, face milling, shoulder milling, pocketing, and high-feed machining of titanium alloys.
Titanium Turning Inserts
Turning
For turning applications, manufacturers can rely on Carbiforce as a Titanium Turning Inserts Supplier, Manufacturer in Pan India, with insert solutions developed for external turning, internal turning, facing, profiling, semi-finishing, and finishing operations.
TITANIUM-MACHINING
APPLICATION QUESTIONS
What are titanium machining inserts?
Titanium machining inserts are replaceable cutting inserts designed for machining titanium and titanium alloys. They are used in operations such as turning, milling, and drilling, with the insert geometry, grade, and coating selected according to the machining application.
FREQUENTLY ASKED QUESTIONS
Everything you need to know about titanium inserts
Titanium machining inserts are replaceable cutting inserts designed for machining titanium and titanium alloys. They are used in operations such as turning, milling, and drilling, with the insert geometry, grade, and coating selected according to the machining application.
REQUEST A CTS330E
APPLICATION REVIEW
Share the component drawing, titanium grade, operation, current insert and holder or cutter, existing cutting parameters, coolant condition, wear photographs, and required production outcome. Carbiforce Engineering will support insert selection, geometry matching, starting parameter definition, and controlled trial planning.
